Unison Industries Corporation

Product We Manufacture

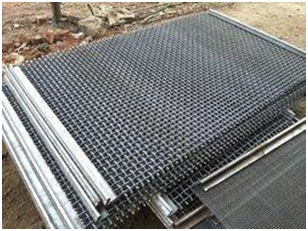

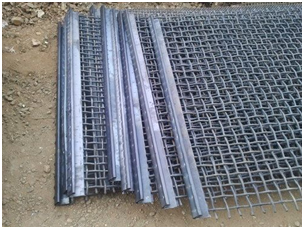

Vibrating Screen Mesh / Crimped Wire Mesh/ Crusher Jali

Vibrating Screen Wire Mesh(Single/Double Crimped) also known as Crusher Jali, Crimped Wire Mesh, Industrial Wire Mesh,Woven Wire Mesh,Wire Netting etc.

Our company has been acknowledged in offering Vibrating Screen Wire Mesh to the clients.

Features:

This is a tailor made item crimped &woven by Semi-automatic Power Loom of varied specifications like width, length, sizes and height with or without Clamping.

Apertures: 1.0mm. to 150.0mm.
Wire dia: 0.6mm to 12.0mm.
Materials:High Carbon High Tensile Spring Steel, Stainless Steel, Brass, Copper, Phosphor Bronze, Aluminum, G.I/ M.S Wires etc.
Clamping : K-1,K-2,K-3,K-4,K-5,K-6,K-7 S, U etc.
Mesh types: Single/Double Crimp, Intermediate, Dovex,

Applications:

The Pre-crimped Woven Wire Meshes has multi-purpose uses for: Screening, Sizing, Grading, Separation, Filtration, Conveying, Drying, Insulation, Reinforcement, Protection works etc.

User industries:

Sponge Iron, Stone & Mineral Crushers,Power, Coal & Minerals Beneficiation, Cement, Ferro Alloys, Fertilizers Plants.
Paper, Sugar, Rice, Flour, Oil & Dal Mills,
Paints & Chemicals Industries,
Petroleum Refinery,
Glass Industries,
Railway & Automotive Industries,

How to enquire?

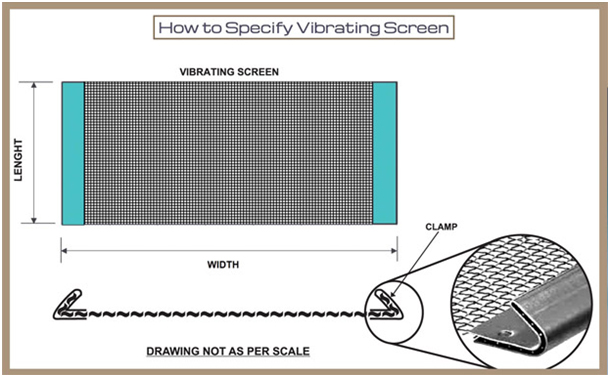

Information Required With Enquiry For Screen Mesh

W. Width - Overall (O. A.) outside to outside hooks

L. Length of screen

O. Opening / Aperture (Space between wire.)

D. Wire size and type of material

C. Clamping along ( Clamping sides or Distance between clamp to clamp)

G.I. & PVC coated Chain Link Fence Mesh

UNISON INDUSTRIAL CORPORATION manufacturer G.I Chain Link Fence Meshfor fencing purposes.This is available in varied specifications of width, length, Mesh size and height.

Features:-

High strength
Anti-corrosive
Apertures/ Wire dia: 1.5 inch to 5 inch and in wires from 2mm to 5mm.

PVC Coated Chain Link Fencing

PVC coated Chainlink Fencing available in various sizes and colours, PVC coated fencing provides additional defence against corrosion and also gives an aesthetic look. It can sustain in extreme hot weather (upto 50° C) and is resistant to Ultraviolet (U.V).

Standard colors Green, Black, Blue, Brown, Red, Grey, White, and Yellow.

PVC Coated Chain Link Fencing :

Available wire thickness: We can provide fencing in thickness starting from 2.00 mm to 5.50 mm
Available Mesh sizes: Starting from 2 inch to 4 inches,
Available width: Starting from 3ft. to 15ft.
Available Length: Normally fencing roll are supplied in 50ft. However, we can supply the roll as per individual requirement.

Barbed Wire

Our company has been acknowledged in offering Vibrating Screen Wire Mesh to the clients.

This product is tested on various parameters of quality for delivering a flawless range. Offered range is manufactured using high grade raw material and latest techniques under the proper guidance of deft technocrats in line with set industry quality standards.

Punched Tape Concertina Coil & RBT wires

We are considered a trusted name in the business to manufacture and supply Punched Tape Concertina Coil that is manufactured using premium quality steel. Appreciated for its tough construction, the proffered set of coils is vastly used for fencing in government buildings, dams, airports and powerhouses. Owing to the high weather resistance, the proposed selection is widely demanded among our customer

RBT Wire

Our organization has come up with an extensive years of working offering RBT Wire with high quality certifications. RBT Wire (Reinforced Barbed Tape Wire) is a name that often crops up in the field of security service. we are offering an optimum quality assortment of Painted RBT Wires.
